CODEC FPGA MODULES

MPEG2 to H.264 Transcoder Modules

发布时间 : 2018-06-07 浏览次数 : 1586

he SOC MPEG-2 to H.264 Transcoder Modules are based on the low latency MPEG-2 decoder IP core and H.264 encoder IP core. The transcoder modules provide high speed (low-latency) and high video quality transcoding from MPEG-2 streams to any desirable H264 profile which includes high, main, and baseline.

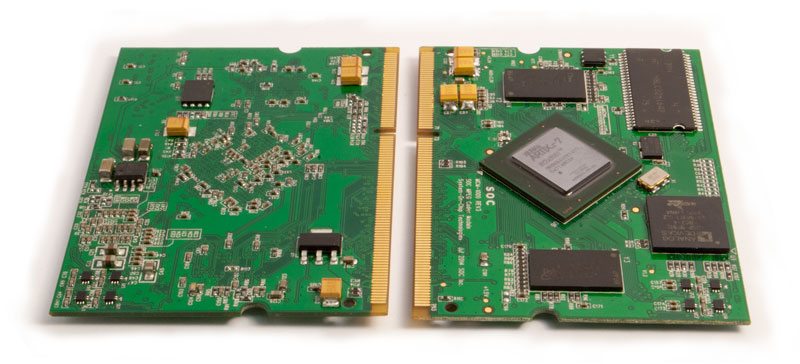

The SOC MPEG-2 to H.264 Video Transcoder System-on-Module (SOM) includes all required hardware components for MPEG-2 to H.264 video transcoding. It is a complete unit that receives MPEG-2 compressed video stream in transport or elementary format, and outputs H.264 compressed video stream in transport or elementary format.


The SOC MPEG-2 to H.264 Video Transcoder SOM can interface with an FPGA or a processor for user product integration or can be connected to I/O cards for direct product integration and fabrication.

SOC also offers product development boards, which allow users to develop products using the SOC MPEG-2 to H.264 Video Decoder Modules.


Customized modules are also available based on user specifications, given a reasonable production volume. In addition, SOC can integrate the I/O interfaces such as Ethernet MAC, UDP/IP, and HDMI into the module to produce full SOM solution.


Product Table


Code Audio Precision Framerate
TC-VA-MPEG2-H264-8b-30-1080-M Video+Audio 8 bits per pixel up to 30fps
TC-V-MPEG2-H264-8b-30-1080-M Video Only 8 bits per pixel up to 30fps
TC-VA-MPEG2-H264-10b-30-1080-M Video+Audio Up to 10 bits per pixel up to 30fps
TC-V-MPEG2-H264-10b-30-1080-M Video Only Up to 10 bits per pixel up to 30fps
TC-VA-MPEG2-H264-8b-60-1080-M Video+Audio 8 bits per pixel up to 60fps
TC-V-MPEG2-H264-8b-60-1080-M Video Only 8 bits per pixel up to 60fps
TC-VA-MPEG2-H264-10b-60-1080-M Video+Audio Up to 10 bits per pixel up to 60fps
TC-V-MPEG2-H264-10b-60-1080-M Video Only Up to 10 bits per pixel up to 60fps
